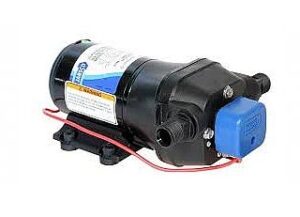

Par Max 3' pressure-controlled pump
12vDC # 31600-0092
24vDC # 31600-0094
- Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
- Dimensions: 220mm long, 105mm wide, 100mm high
- Fuse Size: 10(amp)
- Output: 13 litres/minute (2.9 gallons/minute) open flow
- PRESSURE SWITCH – cuts in at 1.4bar (20psi) – cuts out at 2.8bar (40psi)
- Efficient, high-flow, self-priming pump serving 3 or more outlets
- Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage
- Supplied with snap-in ports for hose or Hep20 connectors
- Quiet running
- Motor protected by automatic thermal overload cut-out
- Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
- Actual Weight: 2.47 Kg (Approx. 2.97 Kg packed)
